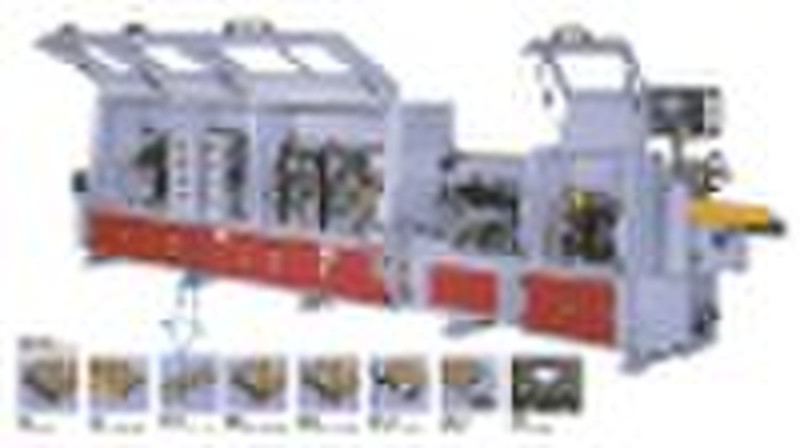

Automatic edging machine
Hui Wan Ye
Contact person
Basic Information
| Place of Origin | Guangdong China (Mainland) |
|---|---|
| Brand Name | Ming Hua |
| Model Number | MFBJ-503L |
Automatic edge/edging machine/edge banding machine/woodworking machine Model:MFBJ-503L Coiled edge-banding belt's thickness:0.3-3mm Coiled edge-banding belt's height:12-62mm Workpiece's thickness:10-60mm Workpiece's min.width:140mm Workpiece's min.length:100mm Workpiece's transit speed:8,12,16,18m/min Feeding decelerating motor:3kw Edge-gluing decelerating motor:0.75kw 1400r/min Pre-milling converter motor:2.2kw*2 8000r/min Power of pressing band decelerating motor:0.18kw Edge-cutting converter motor:0.5kw*2 Coarse trimming converter motor:1.1kw*2 12000rpm 200HZ Refined trimming converter motor:0.7kw*2 12000rpm 200HZ Power of corner trimming:0.33kw*2 Polishing motor:0.18kw*2 1400rpm 50HZ Glue box heater:2.45kw Power:16.22kw Air pressure:0.6mpa Dimension:7460*W1000*H1710mm Net weight:2500kg
-
